Introduction

This article will show you the best practice for making (complex) filters for uploading data from Safran to IDE. The concept is to use a calculated flag-field in Safran (e.g Flag8), where all the complexities of the filter is hidden from the user - resulting in the filter for both Safran and IDE being very simple (here for IDE): "uf_flag8 == True".

It is recommended to use this practice if your filter contains more than 2 fields.

The advantage of this practice is two-fold:

1. You will have a filter in Safran that will guarantee to produce the same result in IDE.

2. It can be used within Safran between multiple users as well as by IDE.

How to set up a calculated flag field in Safran

Step1

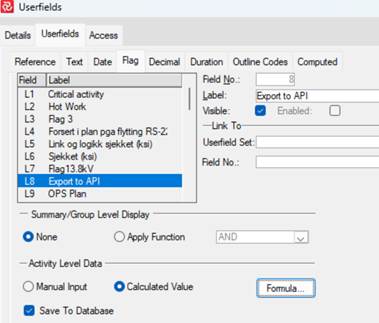

We will in this example use Flag8 (See screenshot below where "L8" represents flag-field #8, and where we have given it "Export to API" as the Label (display text):

Ensure that you have checked the "Calculate Value" option, as well as the "Save To Database" option.
Press the "Formula..."-button.

Step2

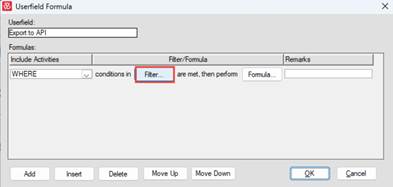

Press the "Filter..."-button seen below:

Step3

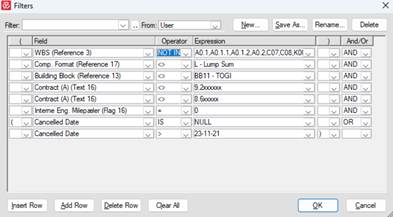

Define the filter according to the documentation in Safran (a complex example is shown below that would have been quite challenging to recreate in IDE and to ensure the same result!):

Press "OK".

Step4

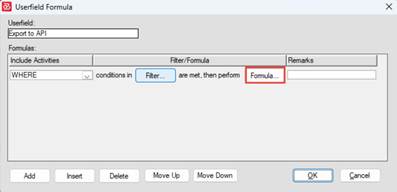

Press the "Formula..."-button seen below:

Step5

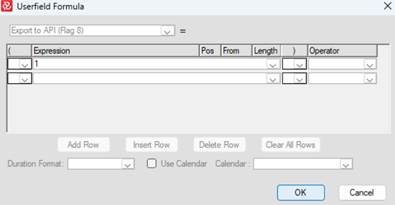

Set "1" as the expression, as seen below:

Press "OK".
