How Core Fields are populated on Upload from Safran

Modified on Thu, 18 Dec at 10:03 AM

TABLE OF CONTENTS

Introduction
Activity Core Fields
Resource Assignment Core Fields
Successor Core Fields

Introduction

If you make a Config using a Template with no ILAP Terms, the "standard" fields of a schedule (according to the new Schedule Data Ontology - SDO) will automatically be transferred during an upload.

This article describes the logic by which the Core field name is populated, on upload) from a Formula that resembles the actual source code used. It is applied relative to the various API response fields in Safran (note that the highlighted words correspond with column names in tables below).

There will be a table for each Planning Object Type (Activity, ResourceAssignment, and Successor).

The logic can be "reversed" to deduce how the download process behaves.

Note that all the Core Fields for Activity and Resource Assignments can be overridden by mapping in Config.

Activity Core Fields

Core field name	Api response field	Formula
ActivityType 3 = RegularActivity 6 = Hammock 4 = MilestoneStart 5 = MilestoneFinish	act_type 0 = Activity 1 = Hammock 5 = Start Milestone 6 = Finish Milestone	if act_type == 0 then return 3 if act_type == 1 then return 6 if act_type == 5 then return 4 if act_type == 6 then return 5
Description	description	Description = description
FinishAsEarlyAsPossible	null	null
FinishNoLaterThan	null	null
MustFinishOn	fixed_finish_date	MustFinishOn = fixed_finish_date
MustStartOn	fixed_start_date	MustStartOn = fixed_start_date
StartAsEarlyAsPossible	null	null
StartAsLateAsPossible	as_late_as_possible_flag	as_late_as_possible_flag == 1
StartNoEarlierThan	target_start_early	StartNoEarlierThan = target_start_early
StartNoLaterThan	target_start_late	StartNoLaterThan = target_start_late
ActualFinish	actual_finish, current_actual_finish, ExportConfiguration.ExportScope	if ExportConfiguration.ExportScope = ScopeEnum.Current return current_actual_finish else return ActualFinish = actual_finish
ActualStart	actual_start, current_actual_start, ExportConfiguration.ExportScope	if ExportConfiguration.ExportScope = ScopeEnum.Current return current_actual_start else return ActualStart = actual_start
ActualWorkHours	expended_qty	ActualWorkHours = expended_qty.HasValue ? expended_qty.Value : 0,
CurrentProgress	current_progress	CurrentProgress = current_progress ?? 0
EarlyStart	baseline_early_start_analyzed, current_early_start_actual, early_start_analyzed, revised_plan_early_start_actual	if ExportConfiguration.ExportScope = ScopeEnum.Baseline return baseline_early_start_analyzed if ExportConfiguration.ExportScope = ScopeEnum.Current return current_early_start_actual if ExportConfiguration.ExportScope = ScopeEnum.Total return early_start_analyzed if ExportConfiguration.ExportScope = ScopeEnum.Revised return revised_plan_early_start_actual
EarlyFinish	baseline_early_finish, current_early_finish, early_finish, revised_plan_early_finish	if ExportConfiguration.ExportScope = ScopeEnum.Baseline return baseline_early_finish if ExportConfiguration.ExportScope = ScopeEnum.Current return current_early_finish if ExportConfiguration.ExportScope = ScopeEnum.Total return early_finish if ExportConfiguration.ExportScope = ScopeEnum.Revised return revised_plan_early_finish
LateFinish	baseline_late_finish, current_late_finish, late_finish, revised_plan_late_finish	if ExportConfiguration.ExportScope = ScopeEnum.Baseline return baseline_late_finish if ExportConfiguration.ExportScope = ScopeEnum.Current return current_late_finish if ExportConfiguration.ExportScope = ScopeEnum.Total return late_finish if ExportConfiguration.ExportScope = ScopeEnum.Revised return revised_plan_late_finish
LateStart	baseline_late_start, current_late_start, late_start, revised_plan_late_start	if ExportConfiguration.ExportScope = ScopeEnum.Baseline return baseline_late_start if ExportConfiguration.ExportScope = ScopeEnum.Current return current_late_start if ExportConfiguration.ExportScope = ScopeEnum.Total return late_start if ExportConfiguration.ExportScope = ScopeEnum.Revised return revised_plan_late_start
FreeFloatHours	free_float, calType(from exported cal)	if calType == days return free_float*24.0 if calType == hours return free_float if calType == minutes return free_float/60.0
TotalFloatHours	total_float, calType(from exported cal)	if calType == days return total_float*24.0 if calType == hours return total_float if calType == minutes return total_float/60.0
PlannedWorkHours	baseline_scope, current_scope, total_scope, revised_scope	if ExportConfiguration.ExportScope = ScopeEnum.Baseline && hasValue return baseline_scope if ExportConfiguration.ExportScope = ScopeEnum.Current && hasValue return current_scope if ExportConfiguration.ExportScope = ScopeEnum.Total && hasValue return total_scope if ExportConfiguration.ExportScope = ScopeEnum.Revised && hasValue return revised_scope else return 0.0
RemainingWorkHours	PlannedWorkHours, CurrentProgress	RemainingWorkHours = PlannedWorkHours * (1 - (CurrentProgress / 100.0))
IsAlwaysOnSchedule	on_target	IsAlwaysOnSchedule = on_target.HasValue && on_target.Value != 0,
IsCancelled	cancelled	IsCancelled = cancelled != null
CancelledDate	cancelled	CancelledDate = cancelled
PlannedProgress	baseline_planned_progress, current_planned_progress, current_planned_progress, revised_planned_progress	if ExportConfiguration.ExportScope = ScopeEnum.Baseline && hasValue return baseline_planned_progress if ExportConfiguration.ExportScope = ScopeEnum.Current && hasValue return current_planned_progress if ExportConfiguration.ExportScope = ScopeEnum.Total && hasValue return current_planned_progress if ExportConfiguration.ExportScope = ScopeEnum.Revised && hasValue return revised_planned_progress
DurationHours	duration, duration_units, calendar	if duration_units == days if calendar.hasValue && SuccesfulylFetchSafranCalendarUsing"calendar" return duration * fetchedCalendar.Hours if calendar.hasValue && !SuccesfulylFetchSafranCalendarUsing"calendar" return duration * 8 if !calendar.hasValue return duration * 24 if duration_units == hours return duration if duration_units == minutes return duration/60.0 return null
RemainingDurationHours	remaining_duration, duration_units, calendar	if duration_units == days if calendar.hasValue && SuccesfulylFetchSafranCalendarUsing"calendar" return remaining_duration * fetchedCalendar.Hours if calendar.hasValue && !SuccesfulylFetchSafranCalendarUsing"calendar" return remaining_duration * 8 if !calendar.hasValue return remaining_duration * 24 if duration_units == hours return remaining_duration if duration_units == minutes return remaining_duration/60.0 return null
FinishOnOrAfter	(not supported)
FrontLineDate	frontline_date	FrontLineDate = frontline_date
CalendarIlapId (internal)	Calendar?.IlapId (dto level assignment)
Code	name	Code = name
HostObjectId (internal)	safranProject.networkId, id	safranProject.networkId\|id
Calendar	calendar, exportedCalendars	let x = "" if calendar.hasValue x = calendar else if isDefault247CalendarCreatedBySystem x = "_ILAP_24/7" else if defaultCalendarWpn.HasValue x = defaultCalendarWpn Get firstOrDefault from exportedCalendars where calendarHostObjectId ends with "\|x"

Resource Assignment Core Fields

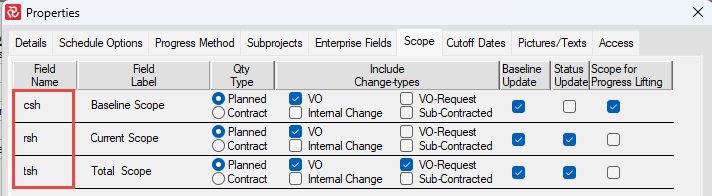

There is a setup in Safran that allows some internal logic for which Resource Assignment should be included for an activity for 3 different "scope types" (Baseline, Current and Total):

These flags are set on so called "Status Update" in Safran according to the setup above, and these flags are then used in IDE code to determine which Resource Assignments to upload:

Include = (exportscope = baseline && resourceAssignment.csh_flag) ||
(exportscope = current && resourceAssignment.rsh_flag) ||
(exportscope = total && resourceAssignment.tsh_flag)

Core field name	Api response field	Formula
PlannedHours	duration, calType(from exported cal) as duration_units, (resource.calendar ?? safranActivity.calendar) as calendar	if duration_units == days if calendar.hasValue && SuccesfulylFetchSafranCalendarUsing"calendar" return duration * fetchedCalendar.Hours if calendar.hasValue && !SuccesfulylFetchSafranCalendarUsing"calendar" return duration * 8 if !calendar.hasValue return duration * 24 if duration_units == hours return duration if duration_units == minutes return duration/60.0 return null
ActualHours	actual_qty	ActualHours = actual_qty.HasValue ? actual_qty.Value : 0,
CurrentProgress	current_progress	CurrentProgress = current_progress.HasValue ? current_progress.Value : 0d
ResourceIlapId		Resource?.IlapId(dto level assignment)
ProfileIlapId		Profile?.IlapId(dto level assignment)
ResourceUsageType		ResourceUsageType = ResourceUsageType.StaffTime(2)
Code	safranProject.networkId, activity.id, id	safranProject.networkId\|activity.id\|id
HostObjectId	safranProject.networkId, activity.id, id	safranProject.networkId\|activity.id\|id
Profile
Resource	resource_def_id	Check if any exported resource's hostObjectId ends with - "\|{resource_def_id}"

Successor Core Fields

This is the method by which Safran API fields are populating links in the internal IDE Core fields (which are not possible to override in Config mapping):

Core field name	Api response field	Formula
Type StartToStart = 0, StartToFinish = 1, FinishToStart = 2, FinishToFinish = 3	activityLink.link_type StartToStart = 1, StartToFinish = 2, FinishToStart = 3, FinishToFinish = 4	if activityLink.link_type == 1 return 0 if activityLink.link_type == 2 return 1 if activityLink.link_type == 3 return 2 return 3
LagHours	activityLink.lag_time, calType(from exported cal) as duration_units, (activityLink.calendar) as calendar	if duration_units == days if calendar.hasValue && SuccesfulylFetchSafranCalendarUsing"calendar" return activityLink.lag_time * fetchedCalendar.Hours if calendar.hasValue && !SuccesfulylFetchSafranCalendarUsing"calendar" return activityLink.lag_time * 8 if !calendar.hasValue return activityLink.lag_time * 24 if duration_units == hours return activityLink.lag_time if duration_units == minutes return activityLink.lag_time/60.0 return null
CalendarIlapId	(Internal use)	Calendar?.IlapId
Calendar	exported calendars, activityLink.calendar as calendar	let x = "" if calendar.hasValue x = calendar else if isDefault247CalendarCreatedBySystem x = "_ILAP_24/7" else if defaultCalendarWpn.HasValue x = defaultCalendarWpn Get firstOrDefault from exportedCalendars where calendarHostObjectId ends with "\|x"
SuccessorObjectIlapId		SuccessorObject?.IlapId
SuccessorObject	successor that was found
Code	activityLink.network_id, activityLink.prev_id, activityLink.next_id, activityLink.link_type	activityLink.network_id\|activityLink.prev_id\|activityLink.next_id\| activityLink.link_type
HostObjectId	activityLink.network_id, activityLink.prev_id, activityLink.next_id, activityLink.link_type	activityLink.network_id\|activityLink.prev_id\|activityLink.next_id\| activityLink.link_type
