How to setup Connector for Safran

Modified on Mon, 25 Aug at 10:12 AM

Table of contents

Introduction
Prerequisites
How to create
Effect on Connector for selecting different execution component
Authentication types explained:
Test & Persist

Introduction

In this article, you’ll learn how to set up a Safran connector using the available authentication options.

Prerequisites

Before creating a Safran connector, ensure you have:

You should have the permission of Setup Admin role to create a connector.
Desktop client should be installed on your machine or Autonomous component should be installed for your tenant.
Required authentication details (provided by Tenant Admin).
Any custom request headers (provided by Tenant Admin).

How to create

Access the IDE web application and navigate to Setup > Connectors
Click on the button +New Connector
- A modal will appear having the following required fields:
  - Title, Host System, Execution component
Provide a meaningful title.
Select the execution component (Desktop or Autonomous Component).
Select Safran Project from the Host system dropdown. This will populate the following new fields:
- Required: Authentication Type, URL
- Optional: Owner, User owner verification (checkbox), Manage Customer Request Headers
Lastly add details to all of the required fields and hit create.

Please note each connector's URL must be unique otherwise error will be shown

Effect on Connector for selecting different execution component

Authentication types depend on the execution component you choose.

Selecting Desktop client as execution component provides the following options as authentication type

AzureAD Authentication
Basic Authentication
NO Authentication
Windows Authentication

While desktop client has more options to authenticate the connector, Autonomous Component provides only three types:

Azure Authentication as Application (Client Secret)
Basic Authentication
No Authentication

Authentication types explained:

Each authentication method has its own setup process. Here's what you need to know

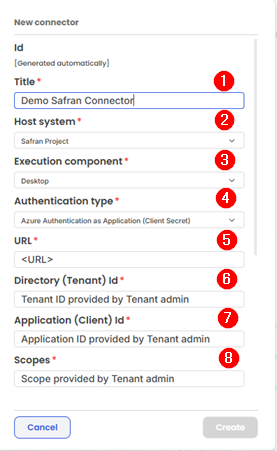

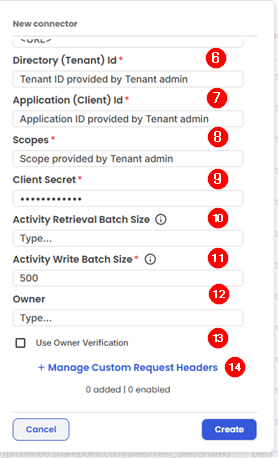

Azure Authentication as Application:

Azure Authentication as Application allows the connector to authenticate using an application identity registered in Azure Active Directory (Azure AD).

Here is the setting you need to configure, and they are shown with red numbers and described below:

1	Title	Title of the connector
2	Host System	Sarfan Project
3	Execution Component	Desktop Client or Autonomous Component
4	Authentication Type	Azure Authentication as Application: (Client Secret)
5	URL	The URL of the Safran host system where the connector will connect.
6	Directory (Tenant) ID	The unique identifier for the Azure AD tenant that owns the application registration
7	Application (Client) ID	The identifier of the Azure AD app registration
8	Scopes	Defines what resources the connector can access.
9	Client Secret	A secure credential generated during Azure AD app registration.
10	Activity Retrieval Batch Size (optional)	Number of activities to retrieve per batch. If your schedule has more than 50k activities, we highly recommend specifying a batch size. Use batch size like 10000.
11	Activity Write Batch Size	Number of activities to create/modify per batch. Use batch size like 500.
12	Owner (optional)	The designated user or group for this connector.
13	Use Owner verification (optional)	Toggle to check if owner verification is required. By default, it's unchecked.
14	Manage Custom Header (optional)	Custom HTTP headers if required by the host system for API

Note: Consult with your Tenant admin to get the required information

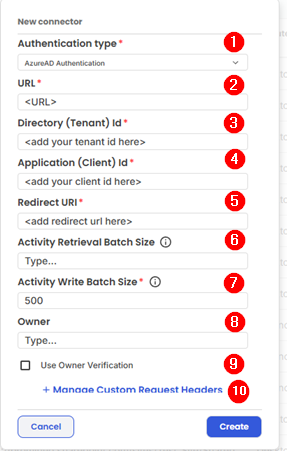

AzureAD Authentication:

Here is the setting you need to configure, and they are shown with red numbers and described below:

1	Authentication Type	AzureAD Authentication
2	URL	The URL of the Safran host system where the connector will connect.
3	Directory (Tenant) ID	The unique identifier for the Azure AD tenant that owns the application registration
4	Application (Client) ID	The identifier of the Azure AD app registration.
5	Redirect URI	The redirect URL
6	Activity Retrieval Batch Size (optional)	Number of activities to retrieve per batch. If your schedule has more than 50k activities, we highly recommend specifying a batch size. Use batch size like 10000.
7	Activity Write Batch Size	Number of activities to create/modify per batch. Use batch size like 500.
8	Owner (optional)	The designated user or group for this connector.
9	Use Owner verification (optional)	Toggle to check if owner verification is required. By default, it's unchecked.
10	Manage Custom Header (optional)	Custom HTTP headers if required by the host system for API

Note: Consult with your Tenant admin to get the required information

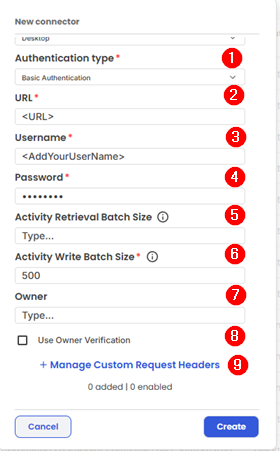

Basic Authentication:

Here is the setting you need to configure, and they are shown with red numbers and described below:

1	Authentication Type	Basic Authentication
2	URL	The URL of the Safran host system where the connector will connect.
3	Username	Your username
4	Password	Password
5	Activity Retrieval Batch Size (optional)	Number of activities to retrieve per batch. If your schedule has more than 50k activities, we highly recommend specifying a batch size. Use batch size like 10000
6	Activity Write Batch Size	Number of activities to create/modify per batch. Use batch size like 500.
7	Owner (optional)	The designated user or group for this connector.
8	Use Owner verification (optional)	Toggle to check if owner verification is required. By default, it's unchecked.
9	Manage Custom Header (optional)	Custom HTTP headers if required by the host system for API

Note: Consult with your Tenant admin to get the required information

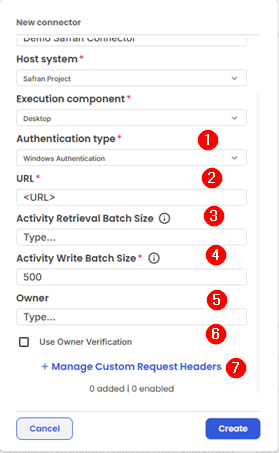

Windows Authentication:

Here is the setting you need to configure, and they are shown with red numbers and described below:

1	Authentication Type	Windows Authentication
2	URL	The URL of the Safran host system where the connector will connect.
3	Activity Retrieval Batch Size (optional)	Number of activities to retrieve per batch. If your schedule has more than 50k activities, we highly recommend specifying a batch size. Use batch size like 10000
4	Activity Write Batch Size	Number of activities to create/modify per batch. Use batch size like 500.
5	Owner (optional)	The designated user or group for this connector.
6	Use Owner verification (optional)	Toggle to check if owner verification is required. By default, it's unchecked.
7	Manage Custom Header (optional)	Custom HTTP headers if required by the host system for API

Note: Consult with your Tenant admin to get the required information

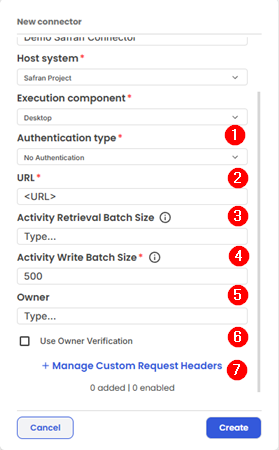

No Authentication:

Here is the setting you need to configure, and they are shown with red numbers and described below:

1	Authentication Type	No Authentication
2	URL	The URL of the Safran host system where the connector will connect.
3	Activity Retrieval Batch Size (optional)	Number of activities to retrieve per batch. If your schedule has more than 50k activities, we highly recommend specifying a batch size. Use batch size like 10000
4	Activity Write Batch Size	Number of activities to create/modify per batch. Use batch size like 500.
5	Owner (optional)	The designated user or group for this connector.
6	Use Owner verification (optional)	Toggle to check if owner verification is required. By default, it's unchecked.
7	Manage Custom Header (optional)	Custom HTTP headers if required by the host system for API

Note: Consult with your Tenant admin to get the required information

Test & Persist

After creating the connector:

For Desktop Client execution:
- Open the IDE Desktop Client
- Navigate to the Connectors tab
- Click Test to verify connection
- Click Persist to fetch schedules and host fields from P6
For Autonomous Component execution:
- Test is done periodically via a background job, but it can be also done using desktop client.
- Alternatively: Go to Setup > Connectors in the web app, and open the newly created connector and click Persist to force retrieval of schedules and host fields from P6. After persisting, reload the page after a few minutes to verify the updated connector status.

Checkout this article to find out more about test & persist
